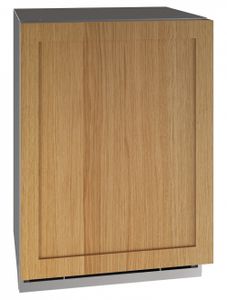

U-Line 5 Class 5.1 Cu. Ft. Panel Ready Beverage Center


Model #:

UHBD524-IS01A

Model #: UHBD524-IS01A
670614
U-Line
$7,259.00

At a Glance

Product Dimensions 33.69"h x 23.63"w x 22.94"d

A favourite of cocktail enthusiasts, wine lovers, and beer drinkers alike, our 24" 5 Class Dual-Zone Beverage Center is the ultimate home bar companion. This product features stainless steel inside and out, convection cooling for quick and consistent temperatures, and a state-of-the-art variable speed compressor.Read More

$7,259.00

Get to know this product.

Product Overview

Product Overview

A favourite of cocktail enthusiasts, wine lovers, and beer drinkers alike, our 24" 5 Class Dual-Zone Beverage Center is the ultimate home bar companion. This product features stainless steel inside and out, convection cooling for quick and consistent temperatures, and a state-of-the-art variable speed compressor. Robust and refined, U-Line's 5 Class Collection features an industry-exclusive full-depth lower interior allowing you to maximize storage space, adjustable blue and white LED lighting, and U-Adjust™ 17 position adjustment for full extension wine racks, Slide & Secure™ Bins, and stainless steel sliding shelf to contain and protect. This model can be built-in or used freestanding and is available with stainless steel or integrated door finishes that accept a custom door panel to match your surrounding cabinetry. This product is Wi-Fi compatible. Access product controls and settings and receive notifications to monitor activity through the U-Line U-Connect™ App.

Wi-Fi compatible with the U-Connect™ App

Industry Exclusive: Full-depth lower interior maximizes storage options

Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation

Stainless steel interior

Stainless steel cabinet, toe kick, and accents

U-Adjust™ Interior: 17 adjustable positions

One removable, full-extension Slide & Secure™ Bin

One removable, full-extension stainless steel shelf

Two removable, full-extension wine racks

Convection cooling system provides a quick cool down and consistent temperature

Independently controlled dual zones

Temperature range: (upper compartment) 38°F - 65°F; (lower compartment) 33°F - 45°F

Adjustable bright white or blue LED lighting

Soft close door with articulating hinge

Volume of 5.1 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 72 cans (12 oz)

Digital touch pad control with blue LED display

Use of U-Line Connect™ App is included during the two-year parts and labor warranty period

Stainless steel handle (7/8" diameter)

Integrated model requires 3/4" custom door panel and handle (not supplied by U-Line)

Field reversible door is shipped right-hand hinged

Built-in or freestanding

Four adjustable leveling legs

Useful Documents
Specifications

General Specs

Width (in.)23.63
ENERGY STAR CertifiedNo
Depth (in.)22.94
Height (in.)33.69
Locking DoorNo
Handle TypeCustom
Light(s)LED
Door Swing OptionReversible Hinge
Number of Shelves4
Manufacturer Warranty2 Year Parts & Labor / 5 Year Sealed System Parts
Appliance Fit Width (in.)24
Wifi CapableYes
ColorCustom
Installation TypeBuilt-In
Depth TypeCounter Depth
Shipping Depth (cm)72.72
Shipping Height (cm)91.44
Shipping Width (cm)67.31
Weight Kilogram64.41
Overall Height (in.)33.69
Overall Height (cm.)85.57
Under The Counter CapableYes
Appliance Fit Width (cm.)60
Collection5 Class
Color Finish NameCustom
Bottle Capacity68
Outdoor ApprovedNo
Custom Panel ReadyYes
Smart CompatibleYes
Total Capacity (cu. ft.)5.1
Shipping Depth (in.)28.63
Shipping Width (in.)26.5
Shipping Height (in.)36
Width (cm)60.02
Height (cm.)85.57
Voltage115
Frequency60
Amp1.2
Depth (cm.)58.27

Dimensions Inches:

Panel Height30”
Panel Thickness0.75”
Panel Type (Frame Panel or Solid Panel)2.75"
Panel Width23.5"

Dimensions Centimeters:

Panel Height76.2cm
Panel Thickness1.9cm
Panel Type (Frame Panel or Solid Panel)6.99cm
Panel Width59.69cm
